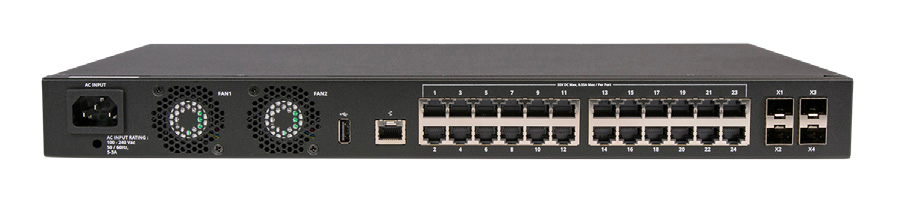

ICX 8200-24PV PoE
No Compromise Security, High-Performance Versatility
Palo Alto Networks Products
RUCKUS ICX 8200 AV switches
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Key Product Features:
Enterprise-Grade AV Performance- 24x 1/100/1000 Mbps RJ45 802.3at PoE+ **rear-facing** ports, optimized for clean rack cable management.
- High-speed connectivity with 4x 1/10/25 GbE SFP28 rear-facing ports for stacking or uplinks.
- Ships with preconfigured AV Profiles to ensure predictable results for Dante, NDI, and more.
- Stackable up to 12 units with a massive **1,200 Gb/s aggregate stack bandwidth**.
- Full Layer 3 Routing (Static, RIP, OSPF) and **VxLAN** support for advanced network segmentation.
- Includes dedicated out-of-band management, USB Type-C console, and USB storage ports.
Networking Features:
| Interface & AV Optimization |
|
| Performance & Scaling |
|
Technical Specifications:
| Product classification | |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet Pro AV Switch |
| Product Brand | RUCKUS® |
| General Specifications | |
| Switching Capacity, maximum | 248 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| 25 GbE SFP28 Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 370 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 1200 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
Documentation:
Download the Ruckus ICX Datasheet(PDF).
Download the Palo Alto Networks PA-5200 Series Specification Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing subject to change without notice.
