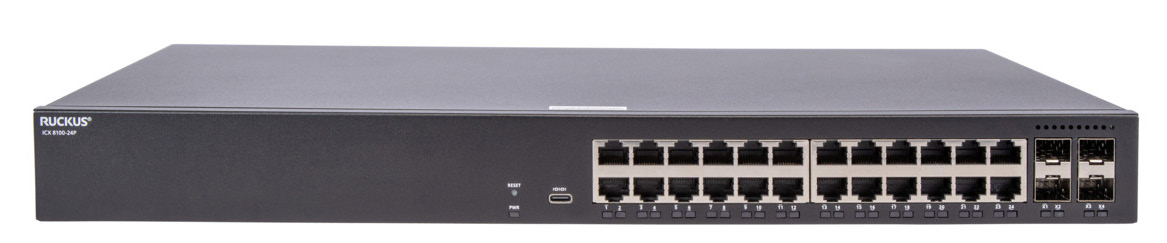

ICX 8100-24P-V PoE
No Compromise Security, High-Performance Versatility
Palo Alto Networks Products
RUCKUS ICX 8100 AV switches
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Key Product Features:
Designed for AV Rack & In-Wall Installations- Features 24x 10/100/1000 Mbps RJ-45 PoE+ ports, specifically built for professional AV networking environments.
- Integrated USB Type-C port for simplified console management and modern connectivity.
- Ships with preconfigured AV Profiles for true plug-and-play deployment with verified presets.
- 370W total PoE budget supporting 802.3at PoE+ (up to 30W per port).
- Perfect for powering a high density of AV-over-IP endpoints, controllers, and interfaces.
- Robust switching capacity of 132 Gb/s to handle bandwidth-intensive 4K video and multicast audio.
- Equipped with 4x 1 GbE SFP uplink ports for versatile network integration.
| Product classification | |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet Pro AV Switch |
| Product Brand | RUCKUS® |
| General Specifications | |
| Switching Capacity, maximum | 132 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 370 W |
| PoE/PoE+ | Yes |
| Stacking | No |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | No |
| OpenFlow with Hybrid Port Mode | No |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
Technical Specifications:
| Metric | Specification |
| Max Switching Capacity | 132 Gb/s |
| RJ45 Ports | 24 x 1GbE |
| Uplink Ports | 4 x 1GbE SFP |
| PoE Budget | 370 W |
| Management | USB Type-C Console |
| Layer 3 Support | None (L2 Only) |
Networking Features:
| Interface Modes |
|
| AV Optimization |
|
| Performance & Energy |
|
| PoE Specifications |
|
Documentation:
Download the Ruckus ICX Datasheet(PDF).
Download the Palo Alto Networks PA-5200 Series Specification Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing subject to change without notice.
