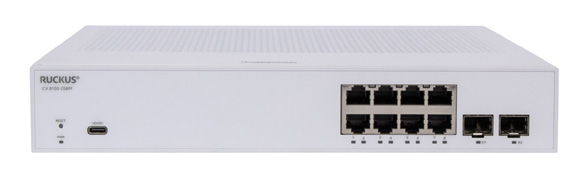

ICX 8100-C08PF-V PoE
No Compromise Security, High-Performance Versatility
Palo Alto Networks Products
RUCKUS ICX 8100 AV switches
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Key Product Features:
Enterprise-Class Compact Switching- 8x 1 GbE RJ45 ports in a compact, fanless form factor suitable for quiet environments.
- High-performance uplinks with 2x 1 GbE SFP and 2x 10 GbE SFP+ ports for high-speed connectivity.
- Energy Efficient Ethernet (EEE) support for reduced power consumption without compromising performance.
- Supports 802.3at PoE+ standards to power access points, IP cameras, and VoIP phones.
- Total PoE power budget of 124 W, providing reliable power delivery for high-density edge devices.
- Full non-blocking switching capacity of 68 Gb/s for seamless data handling.
- Support for sFlow for network-wide visibility and traffic monitoring.
- Designed for diverse regional deployments including Australia, New Zealand, and Asia.
| General Specifications | ICX 8100-C08PF |
| Switching Capacity | 68 Gb/s |
| 1 GbE RJ45 Ports | 8 |
| 10 GbE SFP+ Uplink Ports | 2 |
| 1 GbE SFP Uplink Ports | 2 |
| PoE Power Budget | 124 W |
| Form Factor | Compact / Fanless |
Technical Specifications:
| Metric | Specification |
|---|---|
| Maximum Switching Capacity | 68 Gb/s |
| Maximum 1 GbE RJ45 Ports | 8 |
| Maximum 1 GbE SFP Ports | 2 |
| Maximum 10 GbE SFP+ Ports | 2 |
| Maximum PoE Power Budget | 124 W |
| PoE/PoE+ | Yes |
| Stacking | No |
| sFlow | Yes |
| Layer 3 (Static, RIP, OSPF) | No |
| OpenFlow with Hybrid Port Mode | No |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
Documentation:
Download the Ruckus ICX Datasheet(PDF).
Download the Palo Alto Networks PA-5200 Series Specification Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing subject to change without notice.
