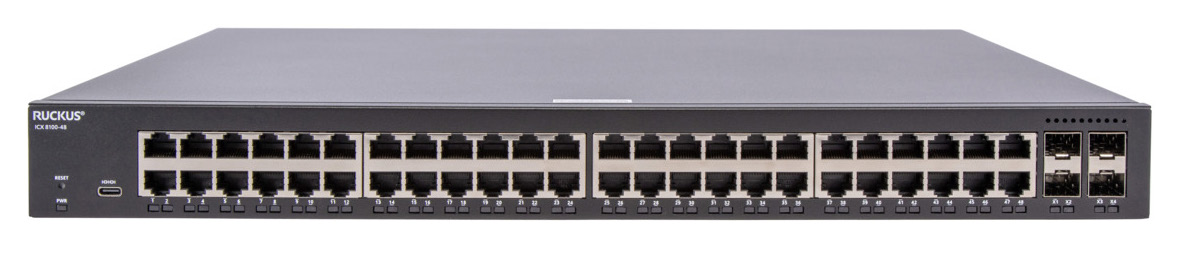

ICX 8100-48P-V PoE
No Compromise Security, High-Performance Versatility
Palo Alto Networks Products
RUCKUS ICX 8100 AV switches
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Key Product Features:
High-Density AV Deployment- 48x 10/100/1000 Mbps RJ-45 PoE+ ports, ideal for large-scale AV-over-IP installations.
- Single integrated power supply with a USB Type-C port for modern console management.
- Includes preconfigured AV Profiles for seamless integration with Dante, NDI, and more.
- 740W PoE budget (802.3at) providing up to 30W per port across the switch.
- 4x 1/10GbE SFP+ uplink ports to ensure zero bottlenecks for high-resolution video streams.
Networking Features:
| Interface & AV Optimization |
|
| Performance & Energy |
|
Technical Specifications:
| Product classification | |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
| General Specifications | |
| Switching Capacity, maximum | 180 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 370 W |
| PoE/PoE+ | Yes |
| Stacking | No |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | No |
| OpenFlow with Hybrid Port Mode | No |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
Documentation:
Download the Ruckus ICX Datasheet(PDF).
Download the Palo Alto Networks PA-5200 Series Specification Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing subject to change without notice.
