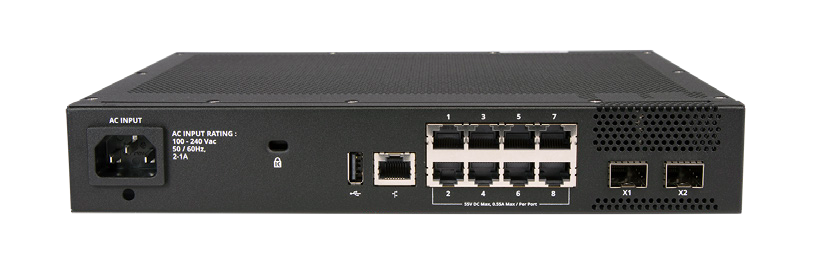

ICX 8200-C08PFV PoE
No Compromise Security, High-Performance Versatility
Palo Alto Networks Products
RUCKUS ICX 8200 AV switches
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Key Product Features:
High-Performance Compact AV Switching- 8x 1/100/1000 Mbps RJ45 802.3at PoE+ ports with a **rear-facing** design, ideal for clean AV rack and in-wall installations.
- Fan-less design ensures silent operation, perfect for desktop or noise-sensitive environments.
- Equipped with 1x RJ45 Ethernet port for out-of-band management and USB Type-C for modern console access.
- Includes 2x 1/10 GbE SFP+ rear-facing ports for high-speed uplinks or stacking.
- Advanced feature support including **VxLAN** for network segmentation and **Layer 3 Routing** (Static, RIP, OSPF).
- Stackable up to 12 units per stack with an aggregate bandwidth of 240 Gb/s.
Networking Features:
| Interface & AV Optimization |
|
| Advanced Performance |
|
Technical Specifications:
| Product classification | |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet Pro AV Switch |
| Product Brand | RUCKUS® |
| General Specifications | |
| Switching Capacity, maximum | 56 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 8 |
| 1 GbE SFP Ports, quantity, maximum | 2 |
| 10 GbE SFP+ Ports, quantity, maximum | 2 |
| 25 GbE SFP28 Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 124 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 240 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
Documentation:
Download the Ruckus ICX Datasheet(PDF).
Download the Palo Alto Networks PA-5200 Series Specification Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing subject to change without notice.
